Product Overview

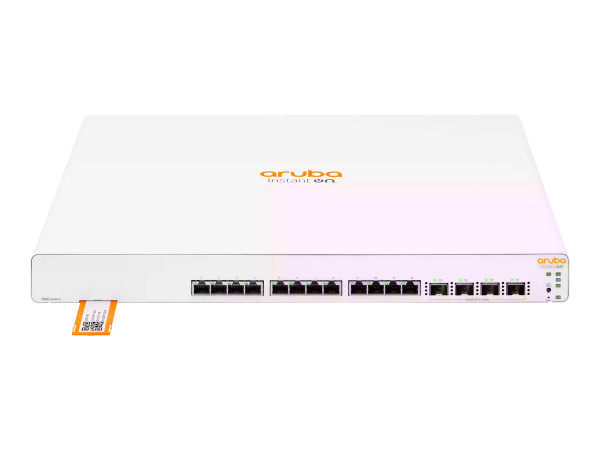

HPE Networking Instant On 1960 12XGT 4SFP+ Switch - switch - 12 ports - smart - rack-mountable
| Device Type | Switch - 12 ports - L2+ - smart - stackable |
|---|---|
| Dimensions (WxDxH) | 17.4 in x 13.8 in x 1.7 in |
| Ports | 12 x 100/1000/10000 + 4 x 10 Gigabit SFP+ |
| Power | AC 100-240 V (50/60 Hz) |
| Pricing Type | BTO |
| Weight | 9.48 lbs |
| Brand | HP |
| MPN | JL805A#ABA |
| Enclosure Type | Rack-mountable 1U |
| Jumbo Frame Support | 9216 bytes |
| MAC Address Table Size | 16000 entries |
| Remote Management Protocol | RADIUS, SNMP 1, SNMP 2c, SNMP 3, HTTP, HTTPS, SCP, TFTP, RMON |
| Routing Protocol | IGMP, IGMPv2, IGMPv3, MLD, MLDv2, static IPv4 routing |
| Brand Website | HPE Aruba |
| Middle Tier Pricing | 1018.4903 |
| Capacity | IPv4 routing table entries: 512 IPv6 routing table entries: 512 |
| Performance | Latency (100 Mbps): 7.4 s Latency (1 Gbps): 4.2 s Latency (10 Gbps): 1.1 s Throughput: 238 Mpps Switching capacity: 320 Gbps |
| Compliant Standards | IEEE 802.1x, IEEE 802.3u, IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad (LACP), IEEE 802.1ab (LLDP), IEEE 802.3az, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3i, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3x, IEEE 802.1Q, IEEE 802.1t, IEEE 802. |
| Features | Cloud managed, ACL support, VLAN support, DoS attack prevention, DHCP client, firmware upgradable, SNTP support, QoS, DSCP prioritization, CoS, WRR, auto-uplink (auto MDI/MDI-X), auto-negotiation, flow control, MSTP support, RSTP support, STP support |
