Product Overview

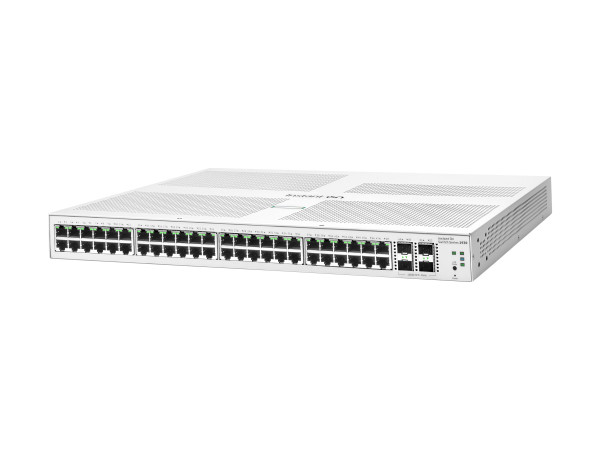

HPE Networking Instant On 1930 48G 4SFP/SFP+ Switch - switch - 48 ports - managed - rack-mountable
| Device Type | Switch - 48 ports - L2+ - managed |
|---|---|
| Dimensions (WxDxH) | 17.4 in x 11.1 in x 1.7 in |
| Ports | 48 x 10/100/1000 + 4 x 1 Gigabit / 10 Gigabit SFP+ |
| Power | AC 120/230 V (50/60 Hz) |
| Weight | 6.9 lbs |
| Brand | HP |
| Enclosure Type | Rack-mountable 1U |
| Jumbo Frame Support | 9216 bytes |
| MAC Address Table Size | 16K entries |
| Remote Management Protocol | SNMP, RMON, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SCP, DHCP, IPv4, IPv6 |
| Routing Protocol | IGMPv2, IGMP, static IPv4 routing, MSTP, RSTP, STP |
| Capacity | Routing table entries (static): 32 |
| Performance | Throughput: 130.95 Mpps Switching capacity: 176 Gbps Latency (1 Gbps): 2.2 s Latency (10 Gbps): 1.2 s |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3az |
| Features | Flow control, DHCP support, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, port mirroring, manageable, IPv6 support, half duplex mode, full duplex mode, STP support, RSTP support, MSTP support, ACL support, QoS, Jum |
