Product Overview

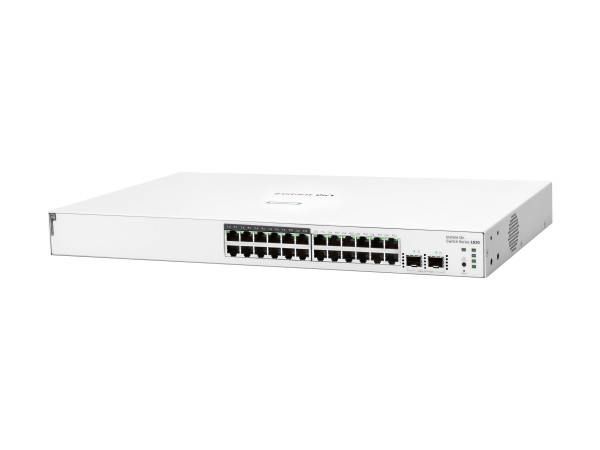

HPE Networking Instant On 1830 24G 12p Class4 PoE 2SFP 195W Switch - switch - 24 ports - smart - rack-mountable
| Device Type | Switch - 24 ports - smart |
|---|---|
| Dimensions (WxDxH) | 17.4 in x 10 in x 1.7 in |
| Ports | 12 x 10/100/1000 + 12 x 10/100/1000 (PoE+) + 2 x Gigabit SFP |
| Power | AC 100-240 V (50/60 Hz) |
| Weight | 7.65 lbs |
| Brand | HP |
| MPN | JL813A#ABA |
| Enclosure Type | Rack-mountable 1U |
| Jumbo Frame Support | 9216 bytes |
| MAC Address Table Size | 16000 entries |
| PoE Budget | 195 W |
| Power Over Ethernet (PoE) | PoE+ |
| Remote Management Protocol | HTTP, HTTPS, ICMP, SNMP 1, SNMP 2c, SCP, TFTP |
| Routing Protocol | IGMP, IGMPv2 |
| Middle Tier Pricing | 339.4903 |
| Performance | Latency (100 Mbps): 5.2 s Latency (1 Gbps): 2.8 s Throughput: 38.68 Mpps Switching capacity: 52 Gbps |
| Compliant Standards | IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1w, IEEE 802.3ac, IEEE 802.3af, IEEE 802.3az, IEEE 802.3at |
| Features | Auto-sensing per device, 1.5MB packet buffer, wall mountable, Cable Diagnostics Function, event log, Syslog support, dual image support, EEE, SCP, Global Storm Control, BPDU Filter, DoS protection, flow control, IGMP snooping, Link Aggregation, LLDP |
