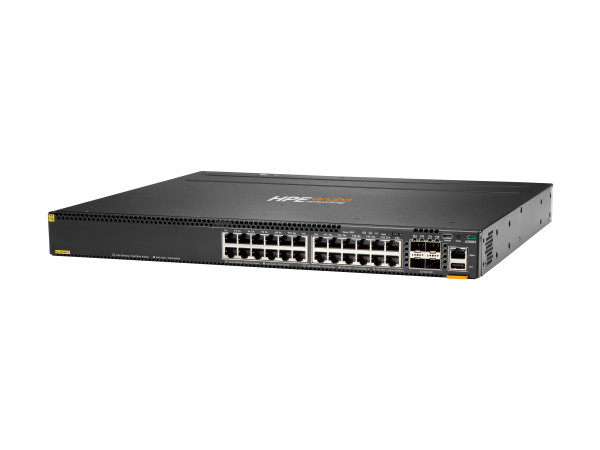

HPE Aruba 6300M - switch - 24 ports - managed - rack-mountable
| Device Type | Switch - 24 ports - L3 - managed - stackable |
|---|---|
| Dimensions (WxDxH) | 17.4 in x 15.2 in x 1.7 in |
| Ports | 24 x 10/100/1000 (PoE+) + 4 x 1 Gigabit / 10 Gigabit / 25 Gigabit / 50 Gigabit SFP56 (uplink / stacking) |
| Weight | 12.24 lbs |
| Brand | HP |
| MPN | JL662A |
| Enclosure Type | Front and side to back rack-mountable 1U |
| Jumbo Frame Support | 9198 bytes |
| MAC Address Table Size | 32000 entries |
| PoE Budget | 720 W |
| Power Over Ethernet (PoE) | PoE+ |
| Remote Management Protocol | RMON, Telnet, SNMP 3, SNMP 2c, HTTPS, TFTP, SSH, CLI, XRMON, SFTP |
| Routing Protocol | EGP, BGP-4, IGMPv2, IGMP, VRRP, OSPFv2, IGMPv3, OSPFv3, MSDP, static IPv6 routing, ECMP, MLD, Bidirectional Forwarding Detection (BFD) |
| Middle Tier Pricing | 3395 |
| Capacity | Switched virtual interfaces (SVIs): 1000 IPv4 host table capacity: 32000 IPv6 host table capacity: 32000 IPv4 routes (Unicast): 64000 IPv6 routes (Unicast): 32000 IPv4 routes (Multicast): 8000 IPv6 routes (Multicast): 8000 IGMP groups: 8000 M |
| Performance | Switching capacity: 448 Gbps Throughput: 334 Mpps Latency (1 Gbps): 2.28 s Latency (10 Gbps): 1.46 s Latency (25 Gbps): 1.9 s Latency (50 Gbps): 3.49 s Stacking bandwidth: 200 Gbps |
| Compliant Standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1v, IEEE 802.3at, IEEE 802.3bz, IEEE 802.3bt |
| Features | DHCP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, High Availability, PVST, MSTP support, ACL support, QoS, Jumbo Frames support, MLD snooping, UDLD, Rapid PVST+, DWRR, LLDP support, MIB, DHCP protection, dual firmw |
