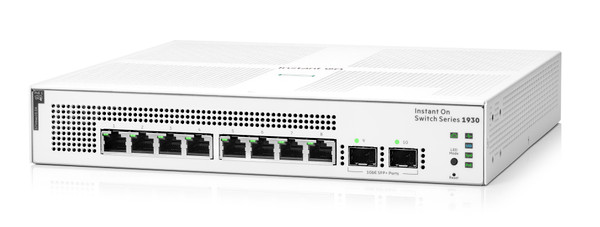

| Product Description | HPE Networking Instant On 1930 8G Class4 PoE 2SFP 124W Switch - switch - 10 ports - managed - rack-mountable |
| Device Type | Switch - 10 ports - L3 - managed |
| Enclosure Type | Rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 8 x 10/100/1000 (PoE) + 2 x Gigabit SFP |
| Power Over Ethernet (PoE) | PoE |
| PoE Budget | 124 W |
| Performance | Switching capacity: 20 Gbps Throughput: 14.88 Mpps Latency (100 Mbps): 5.2 µs Latency (1 Gbps): 3 µs |
| Capacity | Link aggregation ports: 8 IPv4 routes (static): 32 VLANs supported: 256 Access Control Entries (ACEs) per ACL: 480 Packet buffer size: 1.5 MB |
| MAC Address Table Size | 8000 entries |
| Jumbo Frame Support | 9216 bytes |
| Routing Protocol | Static IP routing |
| Remote Management Protocol | SNMP 1, RMON, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, RADIUS |
| Features | Flow control, DHCP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, IPv6 support, half duplex mode, full duplex mode, STP support, MSTP support, ACL support, QoS, TPM, LLDP support, LACP, Energy Efficient Ethernet, CoS, BPDU Filter, PoE Class 4 |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.2af |
| Power | AC 120/230 V (50/60 Hz) |
| Dimensions (WxDxH) | 10 in x 10 in x 1.7 in |
| Weight | 2.56 lbs |
| Localization | English / United States |
