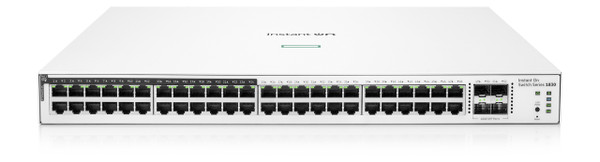

| Product Description | HPE Networking Instant On 1830 48G 24p Class4 PoE 4SFP 370W Switch - switch - 48 ports - smart - rack-mountable |
| Device Type | Switch - 48 ports - smart |
| Enclosure Type | Rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 24 x 10/100/1000 + 24 x 10/100/1000 (PoE+) + 4 x Gigabit SFP |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 370 W |
| Performance | Latency (100 Mbps): 5.2 µs Latency (1 Gbps): 2.8 µs Throughput: 77.37 Mpps Switching capacity: 104 Gbps |
| MAC Address Table Size | 16000 entries |
| Jumbo Frame Support | 9216 bytes |
| Routing Protocol | IGMP, IGMPv2 |
| Remote Management Protocol | HTTP, HTTPS, ICMP, SNMP 1, SNMP 2c, SCP, TFTP |
| Features | Auto-sensing per device, 1.5MB packet buffer, wall mountable, Cable Diagnostics Function, event log, Syslog support, dual image support, EEE, SCP, Global Storm Control, BPDU Filter, DoS protection, flow control, IGMP snooping, Link Aggregation, LLDP support, loop protection, port mirroring, STP support, TPM, VLAN support, Port Scheduling, auto-negotiation, auto-uplink (auto MDI/MDI-X), CoS, cloud managed, DHCP client, firmware upgradable, QoS, SNTP support |
| Compliant Standards | IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1w, IEEE 802.3ac, IEEE 802.3af, IEEE 802.3az, IEEE 802.3at |
| Power | AC 100-240 V (50/60 Hz) |
| Dimensions (WxDxH) | 17.4 in x 13.8 in x 1.7 in |
| Weight | 10.89 lbs |
